We sell a wide range of components needed for the Vacuum and Ultra High Vacuum (HV and UHV).

All products maded with high quality materials.

In this category you will find: KF Cross.

The our most used raw materials are: SUS304, Aluminium and much more.

We are at Your disposal for every kind of request about sizes, shape and raw materials.

Don't esitate to contact us for further informations or requests.

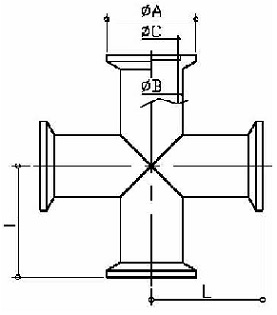

KF CROSS
Code ɸ A ɸ B ɸ C L Material
NW10-X 30,0 13,8 10,0 40,0 SUS304
NW16-X 30,0 21,7 16,0 40,0 SUS304
NW25-X 40,0 27,2 23,0 50,0 SUS304
NW40-X 55,0 42,7 37,1 65,0 SUS304
NW40-X-AL         AL
NW50-X 75,0 60,5 54,9 80,0 SUS304
NW63-X 87,0 76,3 70,0 96,0 SUS304
NW80-X 114,0 89,1 83,0 105,0 SUS304
NW100-X 134,0 114,3 108,0 125,0 SUS304
Unit: mm
