KF Centering Rings
We sell a wide range of components needed for the Vacuum and Ultra High Vacuum (HV and UHV).
All products maded with high quality materials.
In this category you will find: KF Centering Rings (Centering Ring with Outer Ring on request).
The our most used raw materials are: SUS304, Aluminium and much more.
We are at Your disposal for every kind of request about sizes, shape and raw materials.
Don't esitate to contact us for further informations or requests.

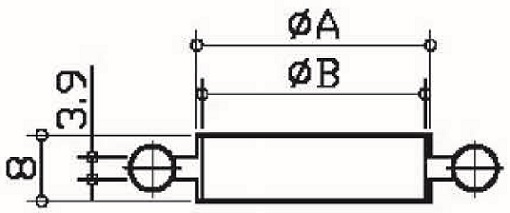

| KF CENTERING RINGS | ||||
| Code | ɸ A | ɸ B | Centering Material | O-Ring Material |
| NW10-CR | 12,0 | 10,0 | AL | (*) |
| NW10-CR-AL-FPM | 12,0 | 10,0 | AL | FPM |
| NW16-CR | 17,0 | 16,0 | AL | (*) |
| NW16-CR-AL-FPM | 17,0 | 16,0 | AL | FPM |
| NW25-CR | 26,0 | 25,0 | AL | (*) |
| NW25-CR-AL-FPM | 26,0 | 25,0 | AL | FPM |
| NW40-CR | 41,0 | 40,0 | AL | (*) |
| NW40-CR-AL-FPM | 41,0 | 40,0 | AL | FPM |
| NW50-CR | 52,0 | 50,0 | AL | (*) |
| NW63-CR | 69,6 | 66,8 | AL | (*) |
| NW80-CR | 82,3 | 79,8 | AL | (*) |
| NW100-CR | 101,3 | 98,8 | AL | (*) |
| NW160-CR | 152,1 | 149,9 | AL | (*) |
| NW200-CR | 212,6 | 209,8 | AL | (*) |
| NW250-CR | 260,7 | 258,8 | AL | (*) |
| (*) = O-RING NOT INCLUDED – TO CHOOSE SEPARATELY | ||||
| Unit: mm | ||||
Centering Ring with O-Ring NW10 in Aluminium and FPM
Centering Ring with O-Ring NW10 in Aluminium and FPM
€0,00
Centering Ring with O-Ring NW16 in Aluminium and FPM
Centering Ring with O-Ring NW16 in Aluminium and FPM
€0,00
Centering Ring with O-Ring NW25 in Aluminium and FPM
Centering Ring with O-Ring NW25 in Aluminium and FPM
€0,00
Centering Ring with O-Ring NW40 in Aluminium and FPM
Centering Ring with O-Ring NW40 in Aluminium and FPM
€0,00
